DESCRIPTION

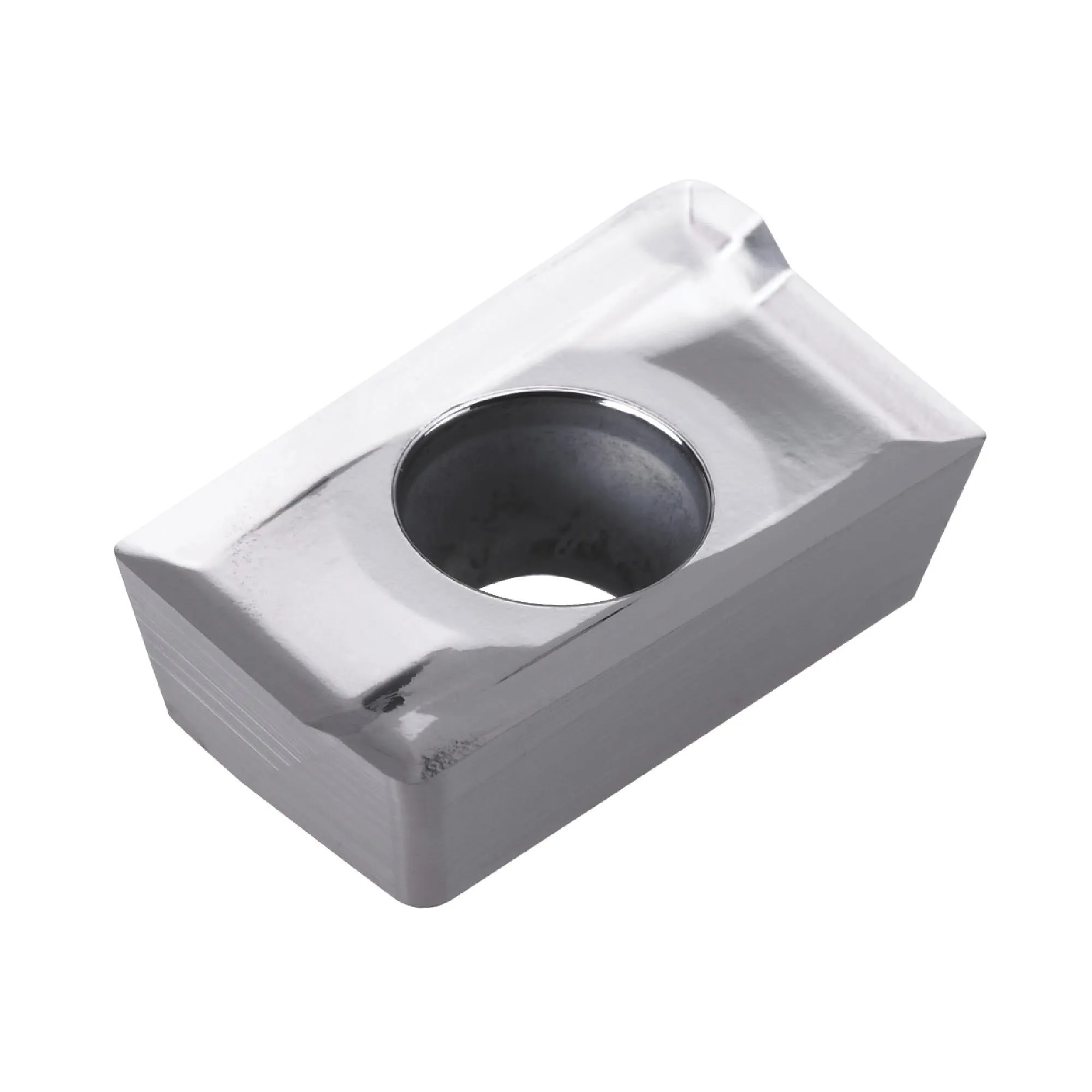

KORLOY Part Number: 1-03-000219
Korloy's Milling Inserts are a great blend of value and quality. Respected as a top brand, Korloy is a go to for many machinists. Korloy produces thousands of inserts each month for shipment all of over the world. Be confident that Korloy will work for you.
Korloy's H01 (ISO N10-N20, K10) grade is a general purpose uncoated carbide that can be used for Cast Iron, Heat resistant alloys, Non-ferrous metals and Hardened Steels.
Korloy's MA chipbreaker is for machining Aluminum. The sharp cutting edge allows for excellent chip flow and welding resistance.
- Sold in package of 10 pieces
- Coating: Polished
- Tool Material: Carbide
- Used For: Non Ferrous
***Product image may be different than actual product.
SPECIFICATIONS
| Brand: | KORLOY |
| Type: | Milling Insert |
| Insert Style: | APKT |
| Insert Shape: | Parallelogram |
| Korloy Holder Series: | Alpha Mill |
| Insert ISO: | APKT1604PDFR-MA3 H01 |
| Insert Size: | 1604 |
| Relief Angle: | 11 deg. |
| Insert IC: | |
| Insert Radius: | 0.031 in. |
| Insert Thickness: | 3/16 in. |
| Chipbreaker: | MA3 |
| Insert Grade: | H01 |
| Coating: | Polished |
| Maximum Depth of Cut: | 0.630 in. |
| Tool Material: | Carbide |
| Application Material Used For:: | Non Ferrous |
| Prop 65: | Yes |
| Country Of Origin: | IMPORT |
| Weight: | 0.005 lbs. |
